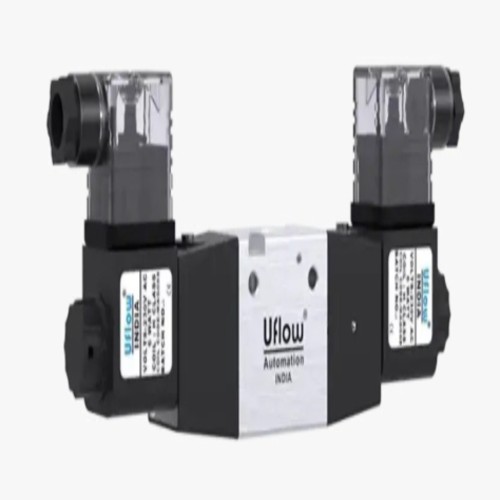

DCS-C2 3x2 Double Solenoid Valve
4330.0 INR/Piece
Product Details:
- Operating Voltage 24V DC / 230V AC (as per coil selected)
- Working Presssure 1.5 to 8 Bar (Same as Pressure)
- Power Consumption 4.8 VA (AC) / 3.5W (DC)
- End Connection Threaded (BSP/NPT option)
- Material Aluminium Body, Engineering Plastic Components
- Valve Structure Double Solenoid Valve
- Way Type 3/2 Way
- Click to View more
X
DCS-C2 3x2 Double Solenoid Valve Price And Quantity
- 1 Piece
- 4330.0 INR/Piece
DCS-C2 3x2 Double Solenoid Valve Product Specifications
- 5C - 50C
- 0.15 to 0.8 MPa (1.5 to 8 bar)
- 5C - 60C
- Double Solenoid Valve
- Threaded (BSP/NPT option)
- 1.5 to 8 Bar (Same as Pressure)
- Black & Silver
- Automation, Pneumatic Systems, Industrial Controls
- Threaded
- Approx 110mm x 50mm x 85mm (varies by model and manufacturer)
- 4.8 VA (AC) / 3.5W (DC)
- Aluminium Body, Engineering Plastic Components
- Approx 350-500 grams (varies by model)
- 24V DC / 230V AC (as per coil selected)
- Precision Machined
- Compressed Air (Filtered, Lubricated or Non-Lubricated)
- 1/4 BSP (standard)
- 3/2 Way
- Sliding Spool, Soft Seat
- Continuous
- 6 mm
- Base Mounting with Screws
- Class F
- NBR (Nitrile Rubber)
- <50 ms
- IP65 (with correctly installed cable gland)
- Momentary Type
DCS-C2 3x2 Double Solenoid Valve Trade Information
- 7 Days
Product Description
UFLOW DCS-C2 3/2-Way Double Solenoid Valve (1/2" BSP)
Scale your industrial automation infrastructure with the heavy-duty, high-volume UFLOW DCS-C2 3/2-Way Double Solenoid Valve. Specifically engineered for large-bore pneumatic control systems, this high-performance valve utilizes dual independent solenoid coils to alternate internal air paths using brief, momentary electrical impulses. Because it mechanically detents and holds its current state until the opposing coil is triggered, the DCS-C2 offers exceptional energy efficiency and serves as a dependable position-memory safeguard during unexpected power fluctuations or total signal dropouts.
Constructed with oversized 1/2" BSP ports, the DCS-C2 handles massive air volume demands with an expansive flow rate of up to 3500 LPM, preventing pressure drop-offs and ensuring ultra-fast cylinder actuation. Its high-grade aluminum frame, solid brass internals, and wear-resistant Nitrile rubber gaskets guarantee reliable, bubble-tight sealing over an operational life exceeding 10 lakh cycles. Shielded by two dual-insulated, IP65-rated Class H epoxy square coils, the entire electrical layout remains highly immune to moisture, dust, and continuous thermal strain, making it ideal for automotive lines, heavy-material handling setups, and continuous manufacturing bays.
Key Features & Applications:
-
Bistable Dual-Coil Operation: Shifts position via momentary electrical signals and physically maintains its pathing even if pilot power drops out entirely.
-
Massive 1/2" BSP Throughput: Delivers up to 3500 LPM of filtered, lubricated air to maximize machine response times across larger pneumatic systems.
-
Premium Mechanical Assembly: Features a corrosion-resistant aluminum shell paired with Nitrile seals to eliminate bypass leakages under heavy cycling up to 600 cycles per minute.
-
IP65 Harsh Environment Shielding: Completely dustproof and splash-resistant coil housings provide continuous-duty security on demanding factory floors.
Engineered for Precise Automation
Designed with industrial automation in mind, the DCS-C2 3x2 Double Solenoid Valve offers reliability and control for demanding pneumatic systems. The combination of fast response, precision machining, and continuous-duty capability ensures it meets the rigorous needs of factories, process plants, and industrial controls.
Durable Construction, Easy Installation
Built from aluminum and high-grade engineering plastics, the valve is robust yet lightweight. The base mounting with screws and threaded port connections (BSP/NPT) make installation straightforward for a variety of applications. The IP65 rating provides dust and water protection when paired with a suitable cable gland.
Optimized Performance and Safety
A soft seat, sliding spool, and NBR (Nitrile Rubber) seals deliver efficient, leak-free operation. Fast switching times under 50 ms combined with Class F insulation and continuous duty rating ensure both safety and long-term reliability, even in challenging industrial settings.
FAQ's of DCS-C2 3x2 Double Solenoid Valve:
Q: How do I install the DCS-C2 3x2 Double Solenoid Valve in my pneumatic system?
A: The DCS-C2 valve is designed for base mounting using screws, and connects to your pneumatic lines via standard 1/4 BSP threaded ports. Ensure correct alignment, use the proper screws for secure mounting, and attach a compatible cable gland to maintain the IP65 enclosure protection.Q: What media types are compatible with this solenoid valve?
A: This valve is engineered for use with compressed air, which can be filtered, lubricated, or non-lubricated. It supports pressures from 0.15 to 0.8 MPa (1.5 to 8 bar), making it versatile for various industrial pneumatic applications.Q: When should I use the manual override feature, and how does it operate?
A: The momentary manual override is intended for temporary actuation during maintenance or emergency operation. It allows manual shifting of the spool to test valve function or operate equipment in the event of power loss.Q: Where can this valve be used given its enclosure protection rating?
A: With an IP65 rating (when a cable gland is installed correctly), the valve is suitable for dusty and wet environments typically found in industrial automation, control systems, and processing applications.Q: What benefits does the sliding spool and soft seat design offer?
A: The sliding spool allows fast, smooth switching (less than 50 ms response time), while the soft seat provides reliable sealing performance, reducing leakage and enhancing efficiency in pneumatic systems.Q: How does the valve's duty cycle and insulation class impact operation?
A: With continuous duty capability and Class F insulation, this valve is ideal for operations that require extended or constant use, delivering safety and longevity under varying load conditions.Q: What is the recommended process for selecting the correct voltage option?
A: Choose between 24V DC or 230V AC operation based on your system's electrical requirements. Ensure the selected coil voltage matches your power supply for safe, reliable performance.Tell us about your requirement
