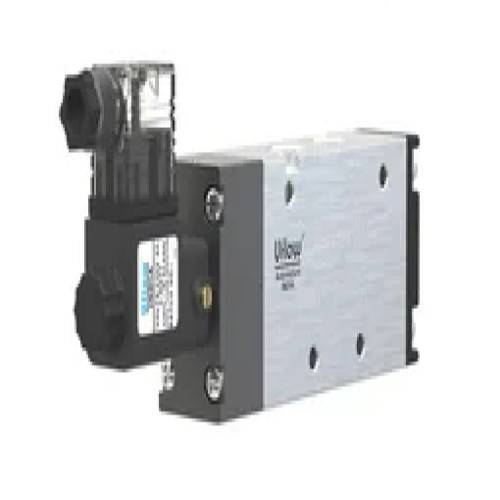

DCS-A1 3x2 Single Solenoid Valve with Spring Return

Name: DCS-A1 3x2 Single Solenoid Valve with Spring Return
Brand: DARSHIL TRADING
Price: 1544.0 INR
Availability: InStock

1544.0 INR/Piece

Get a Price/Quote

Product Details:

End Connection Threaded
Power Consumption 4W
Working Presssure 1.5~8 bar
Operating Voltage 24V DC or 220V AC (as per coil)
Material Aluminum Alloy, Engineering Plastic
Valve Structure Spool Valve
Way Type 3/2 Way
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DCS-A1 3x2 Single Solenoid Valve with Spring Return Price And Quantity

Minimum Order Quantity 1 Piece
Price 1544.0 INR/Piece

DCS-A1 3x2 Single Solenoid Valve with Spring Return Product Specifications

Application Pneumatic Automation, Industrial Control
Material Aluminum Alloy, Engineering Plastic
End Connection Threaded
Weight Approx. 0.32 kg
Port Size 1/4 BSP
Color Silver & Black
Power Consumption 4W
Connection Type Threaded
Working Temperature -5C to 50C
Working Presssure 1.5~8 bar
Valve Structure Spool Valve
Media Air
Processing Type Die Cast
Way Type 3/2 Way
Temperature of Media 5C to 50C
Pressure 0.15~0.8 MPa
Dimension (L*W*H) Approx. 115mm 30mm 50mm
Operating Voltage 24V DC or 220V AC (as per coil)

Mounting Type Base/Subplate
Coil Insulation Class Class F
Product Type Single Solenoid with Spring Return
Seal Material NBR (Nitrile Rubber)
Response Time 30 ms
Body Material Anodized Aluminum
Operating Frequency Up to 5 cycles/sec
Enclosure Protection IP65 (With Proper Cable Gland)
Manual Override Yes

DCS-A1 3x2 Single Solenoid Valve with Spring Return Trade Information

Delivery Time 7 Days

Product Description

UFLOW DCS-A1 3/2-Way Normally Open Single Solenoid Valve with Spring Return (1/4" BSP)

Maximize the safety and efficiency of your pneumatic machinery with the UFLOW DCS-A1 3/2-Way Single Solenoid Valve. Specifically engineered for applications requiring a Normally Open (NO) default configuration, this high-performance valve allows continuous air flow when de-energized, automatically exhausting downstream pressure the moment the solenoid is activated.

Built with a robust aluminum housing and a cartridge-style spool design, the DCS-A1 is optimized for fast response times up to 600 cycles per minute. Its heavy-duty Nitrile seals ensure leak-free performance under operating pressures from 2 to 10 bar, while a generous flow rate of 1200 LPM keeps your systems responsive. Equipped with an IP65-protected Class H insulated coil, this valve delivers exceptional dust and moisture resistance, making it an ideal choice for challenging, high-demand industrial environments.

Key Features & Applications:

Normally Open Configuration: Keeps the flow path open by default, making it ideal for fail-safe pressure relief or continuous supply setups.
Heavy-Duty Construction: Features a corrosion-resistant aluminum body, brass/polymer internals, and premium Nitrile rubber seals.
IP65 Environment Protection: Dustproof and water-resistant coil assembly ensures uninterrupted performance on the factory floor.
Versatile Automation Control: Perfectly suited for single-acting pneumatic actuators, safety interlocks, and air-purging systems.

Reliable Design & Construction

Built from anodized aluminum and engineering plastic, the DCS-A1 valve stands up to rigorous industrial use. Its die-cast body ensures durability, and the IP65 enclosure rating provides resistance against dust and water when paired with the appropriate cable gland. The thoughtful design supports a range of pneumatic applications with an efficient spring return mechanism.

Versatile Application & Easy Installation

Suitable for a variety of pneumatic automation and control processes, this spool valve fits base/subplate mounting for straightforward integration. The 1/4 BSP threaded connections and compact dimensions (115mm x 30mm x 50mm) make installation easy, whether upgrading existing systems or implementing into new projects.

Performance & Operational Efficiency

With fast response times (30 ms) and operating frequencies up to 5 cycles per second, the DCS-A1 valve ensures precise flow control for air media. Its manual override allows for safe intervention and system testing, while NBR seals offer effective and durable sealing properties for consistent, leak-free performance.

FAQ's of DCS-A1 3x2 Single Solenoid Valve with Spring Return:

Q: How does the DCS-A1 Single Solenoid Valve operate within pneumatic automation systems?

A: The valve controls the flow of air in a pneumatic circuit, using a single solenoid mechanism and spring return. When energized, the solenoid shifts the spool to direct air flow as needed. Upon de-energizing, the spring return ensures the valve reverts safely to its default position.

Q: What are the main benefits of the DCS-A1's anodized aluminum and engineering plastic construction?

A: Anodized aluminum ensures corrosion resistance and longevity in industrial environments, while engineering plastic components reduce weight and add strength. This combination delivers a durable, reliable, and maintenance-friendly valve body.

Q: When is manual override on the DCS-A1 valve particularly useful?

A: Manual override is beneficial during setup, maintenance, or emergency situations. It allows operators to manually actuate the valve without electrical power, ensuring safe manual testing or intervention when automated controls are inaccessible.

Q: Where can the DCS-A1 3x2 valve be installed?

A: This valve is designed for base/subplate mounting, ideal for fixed installations in pneumatic automation panels, machinery, and industrial control setups. Its compact size and threaded connections facilitate use in both new and retrofit applications.

Q: What process media and environmental conditions is the valve suitable for?

A: The DCS-A1 is engineered for filtered air within a temperature range of -5C to 50C, making it suitable for most general industrial environments. NBR seals ensure compatibility with air and provide effective sealing under standard pneumatic operation pressures.

Q: How should you select the operating voltage for the coil?

A: The valve is available with coils rated for either 24V DC or 220V AC. Choose the appropriate voltage to match your system's electrical supplies and ensure safe, reliable operation of the solenoid.

Q: What is the expected response time and operating frequency of this valve?

A: The DCS-A1 delivers fast actuation with a response time of 30 milliseconds and can operate efficiently at frequencies up to 5 cycles per second, supporting rapid and precise flow control in dynamic automation processes.
