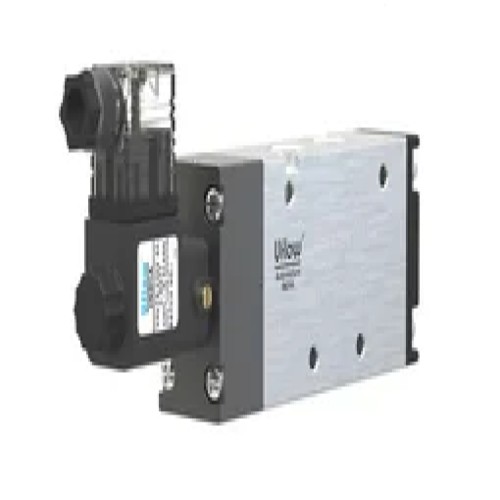

DCS-D2 5x2 Single Solenoid Valve with Spring Return
3361.0 INR/Piece
Product Details:
- Operating Voltage 24V DC / 110V AC / 220V AC (depending on model)
- Working Presssure 1.5 - 8 bar (0.15 - 0.8 MPa)
- Power Consumption 2.5W (DC version typical)
- End Connection Threaded end
- Material Aluminum alloy body with engineered plastic and stainless steel components
- Valve Structure Poppet valve structure
- Way Type 5/2 way
- Click to View more
X
DCS-D2 5x2 Single Solenoid Valve with Spring Return Price And Quantity
- 3361.0 INR/Piece
- 1 Piece
DCS-D2 5x2 Single Solenoid Valve with Spring Return Product Specifications
- 2.5W (DC version typical)
- Approximately 120 mm x 32 mm x 52 mm
- 0.15 - 0.8 MPa
- -5C to 60C
- Filtered compressed air
- -5C to 60C
- Threaded end
- Approx. 320 g
- Aluminum alloy body with engineered plastic and stainless steel components
- 1/4 inch BSP
- Industrial automation, pneumatic systems
- Threaded
- Precision machined
- 24V DC / 110V AC / 220V AC (depending on model)
- 1.5 - 8 bar (0.15 - 0.8 MPa)
- 5/2 way
- Grey/Silver with black components
- Poppet valve structure
- Single solenoid with spring return
- Yes, momentary type
- 50 ms
- Nitrile rubber (NBR)
- Base or body mounting
- IP65 (with cable gland)
- Class F
- Not required (if used, use ISO VG32 oil)
- 5 cycles/sec
DCS-D2 5x2 Single Solenoid Valve with Spring Return Trade Information
- 7 Days
Product Description
UFLOW DCS-D2 5/2-Way Single Solenoid Valve with Spring Return (1/2" BSP)
Empower your heavy industrial automation systems with the high-capacity UFLOW DCS-D2 5/2-Way Single Solenoid Valve. Specifically designed to handle substantial airflow demands, this premium control valve features oversized 1/2" BSP ports optimized to drive and manage larger double-acting pneumatic actuators. It operates using a single-coil electrical command to cleanly direct fluid power across its five ports, utilizing a dependable mechanical internal spring return mechanism to instantly revert the spool to its original safe position the moment power is cut.
Constructed from a robust aluminum housing with premium Nitrile rubber seals and precision-cut brass internals, the DCS-D2 is engineered to survive demanding factory conditions over an extended lifecycle exceeding 10 lakh operations. It maintains low pressure drop while handling significant flow demands up to 3500 LPM at standard pressures between 2 and 10 bar. Outfitted with an IP65-rated, Class H insulated epoxy square coil that shields the core from intense moisture and airborne dust, this valve provides the lightning-fast response times and continuous-duty reliability necessary for high-speed material handling and automated assembly layouts.
Key Features & Applications:
-
High-Volume Double-Acting Control: 5-port, 2-position architecture delivers expansive, bidirectional fluid power control tailored for larger, heavy-duty pneumatic cylinders.
-
Massive 1/2" BSP Porting: Supports massive airflow throughput up to 3500 LPM to prevent pressure bottlenecks and maximize machine cycle speeds.
-
Rugged Mechanical Construction: Built with wear-resistant aluminum, brass internals, and tough Nitrile gaskets to prevent leakage under high-speed industrial cycling.
-
IP65 Ingress Protection: Enclosed in a dust-tight and water-resistant square coil housing optimized for stable operation inside extreme factory processing environments.
Reliable and Versatile Solenoid Valve Solution
The DCS-D2 5x2 Single Solenoid Valve is designed for use in a wide range of pneumatic and industrial automation systems. With a robust aluminum alloy body and high-quality Nitrile rubber (NBR) seals, it offers durability and dependable sealing performance. Featuring IP65 protection and a momentary manual override, this valve ensures reliable, safe operation for various applications.
Flexible Mounting and Easy Integration
Enjoy hassle-free installation with base or body mounting options and threaded 1/4 inch BSP port connections. The compact design and threaded ends make the DCS-D2 ideal for integration into existing systems, promoting ease of maintenance and replacement. Its precise construction supports efficient and leak-free operation.
Efficiency in Performance and Energy Use
Engineered for rapid response times (50 ms) and low power consumption (2.5W for DC versions), this solenoid valve is suitable for high-frequency operations up to 5 cycles per second. The spring return mechanism ensures reliable default positioning, aiding in system safety, while the precision machining guarantees consistent performance with minimal energy waste.
FAQ's of DCS-D2 5x2 Single Solenoid Valve with Spring Return:
Q: How should the DCS-D2 valve be installed in a pneumatic system?
A: The DCS-D2 valve can be installed using either base or body mounting, depending on your system layout. Ensure that the 1/4 inch BSP threaded ports are securely connected to your pipelines and that the cable gland is properly fitted for IP65 protection. Always use filtered compressed air for optimal performance.Q: What types of media and pressure range can the DCS-D2 valve handle?
A: This valve is designed for filtered compressed air applications, operating effectively within a pressure range of 0.15 to 0.8 MPa (1.5 to 8 bar). Using media or pressures outside these specifications may affect its longevity and sealing performance.Q: When is lubrication necessary for the DCS-D2 valve?
A: Lubrication is not required for this valve under ordinary circumstances. If lubrication is needed, use only ISO VG32 oil to ensure compatibility with the NBR seals and to maintain peak operational reliability.Q: Where does the manual override function come into play, and how is it used?
A: The momentary manual override allows temporary manual operation of the valve, useful during maintenance or system setup. To activate, press and hold the override mechanism; the valve returns to its original state when released, ensuring continued automation after manual intervention.Q: What are the electrical requirements for the DCS-D2 valve coils?
A: This valve supports various operating voltages, including 24V DC, 110V AC, and 220V AC (choose the model matching your power supply). The DC version typically consumes 2.5W, contributing to energy efficiency in continuous applications.Q: How does the DCS-D2 benefit industrial automation systems?
A: With fast response times, high cycling capability, and a sealed, durable design, the DCS-D2 boosts automation efficiency by reducing downtime and maintenance. The IP65 rating offers protection in dusty or damp environments, ensuring long-term performance and safety.Q: What materials are used in the DCS-D2 valve, and why are they advantageous?
A: The main body is made from aluminum alloy for light weight and corrosion resistance, while seals are nitrile rubber (NBR) for excellent air sealing. Engineered plastics and stainless steel components enhance durability and support reliable operation in varied industrial environments.Tell us about your requirement
