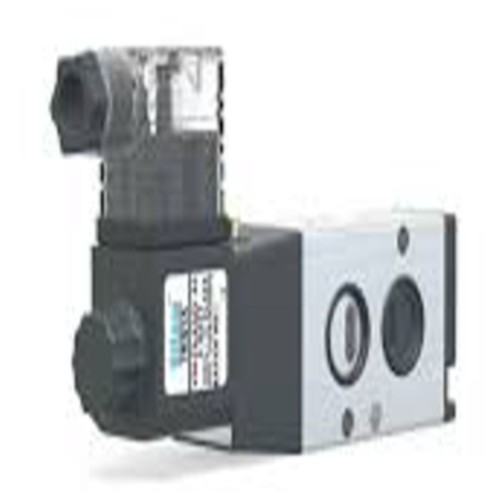

DCS-J1R 3x2 Single Solenoid Namur Valve with Spring Return
1901.0 INR/Piece
Product Details:
- Power Consumption 3W (DC), 4.5VA (AC)
- End Connection Namur Interface
- Working Presssure 0.15 ~ 0.8 MPa
- Operating Voltage 24V DC, 110V AC, 220V AC (Options available)
- Material Aluminum Alloy
- Valve Structure Single Solenoid
- Way Type 3/2 Way
- Click to View more
X
DCS-J1R 3x2 Single Solenoid Namur Valve with Spring Return Price And Quantity
- 1901.0 INR/Piece
- 1 Piece
DCS-J1R 3x2 Single Solenoid Namur Valve with Spring Return Product Specifications
- Approx. 0.6 kg
- -10C to +60C
- 24V DC, 110V AC, 220V AC (Options available)
- Spring Return
- Namur Mounting
- 87 mm x 30 mm x 50 mm (Approximate)
- Namur Interface
- Filtered Compressed Air
- Pneumatic Actuator Control
- Black & Silver
- 1/4 (Namur Interface)
- 3/2 Way
- 3W (DC), 4.5VA (AC)
- Single Solenoid
- Aluminum Alloy
- -10C to +60C
- 0.15 to 0.8 MPa
- 0.15 ~ 0.8 MPa
- F Class
- Anodized Surface
- NBR (Nitrile Rubber)
- Any Position
- Individual Outlet
- Over 10 Million Cycles
- 6 mm
- Electrically operated Single Solenoid with Spring Return
- IP65
- Not Required (Pre-lubricated)
- Yes, Push-Button Type
- Less than 30 ms
DCS-J1R 3x2 Single Solenoid Namur Valve with Spring Return Trade Information
- 7 Days
Product Description
UFLOW DCS-J1R 3/2-Way Single Solenoid NAMUR Valve with Spring Return (1/4" BSP)
Optimize your rotary actuator setups with the direct-mounting UFLOW DCS-J1R 3/2-Way Single Solenoid NAMUR Valve. Explicitly engineered to interface seamlessly with standardized NAMUR-pattern pneumatic actuators, this valve eliminates the need for separate interconnecting hoses and extra fittings, creating a cleaner, more reliable, and space-saving control hookup. It uses a single-coil electrical signal to switch air routing and relies on an internal mechanical spring return to instantly restore the valve to its default state when de-energized, offering dependable fail-safe positioning.
Manufactured with a precision-machined, corrosion-resistant aluminum body, solid brass components, and resilient Nitrile rubber gaskets, the DCS-J1R is built to maintain tight seals through high-speed automation demands up to 600 cycles per minute. It comfortably manages standard working pressures from 2 to 10 bar while providing a smooth airflow capacity of 1200 LPM. Equipped with an IP65-rated, Class H insulated epoxy square coil, the electrical assembly delivers superior protection against industrial dust and washdown spray, making it a perfect fit for process industry automation, chemical handling, and water treatment plants.
Versatile Design and Construction
With a Namur interface and anodized aluminum alloy body, this valve is built for durability and flexibility. Its 3/2-way structure and spring return mechanism are optimized for reliable pneumatic actuator control, making it suitable for various industrial settings. The push-button manual override, IP65 protection, and pre-lubrication streamline maintenance and operation.
Efficient Operation and Performance
Delivering a quick response time of under 30 milliseconds, the DCS-J1R valve enhances system speed and efficiency. Its NBR seals, coil insulation class F, and a cycle life surpassing 10 million operations ensure longevity and consistent performance. Multiple voltage options and a simple Namur mounting process further add to its application convenience.
FAQ's of DCS-J1R 3x2 Single Solenoid Namur Valve with Spring Return:
Q: How is the DCS-J1R Namur Valve typically installed and in which positions can it be mounted?
A: The DCS-J1R Namur Valve is designed for easy installation using the Namur interface, allowing it to be mounted in any position for flexible setups. Simply align and secure it to the actuator using industry-standard Namur mounting.Q: What type of media and operational pressures are suitable for this valve?
A: This valve is engineered for filtered compressed air within a pressure range of 0.15 to 0.8 MPa. It efficiently operates in environments where media temperature and working temperature remain between -10C to +60C.Q: When should the manual override be used, and what is its benefit?
A: The push-button manual override is utilized during maintenance, system testing, or power outages. It enables manual control of the valve, ensuring operation and troubleshooting can occur without electrical actuation.Q: Where can the DCS-J1R valve be most effectively utilized?
A: This valve is ideally suited for controlling pneumatic actuators in a variety of industrial automation systems. Its robust construction and enclosure protection make it suitable for both indoor and outdoor applications requiring reliable air flow management.Q: What is the process for selecting the correct operating voltage for this valve?
A: Choose from the available voltage options of 24V DC, 110V AC, or 220V AC based on your system's electrical specifications and supply. Ensuring proper voltage selection is crucial for optimal operation and safety.Q: How does the pre-lubrication and NBR seal benefit valve operation and maintenance?
A: The pre-lubricated design eliminates the need for in-service lubrication, reducing ongoing maintenance. The NBR (Nitrile Rubber) seals offer excellent resistance to wear, ensuring leak-free and reliable operation over a long service life.Tell us about your requirement
