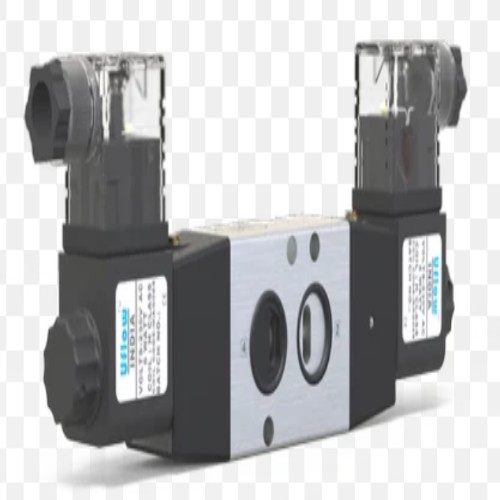

DCS-K1R 5x2 Double Solenoid Namur Valve

Name: DCS-K1R 5x2 Double Solenoid Namur Valve
Brand: DARSHIL TRADING
Price: 2627.0 INR
Availability: InStock

2627.0 INR/Piece

Get a Price/Quote

Product Details:

End Connection Namur Standard
Operating Voltage 24V DC / 230V AC (option)
Working Presssure 1.5 to 8 bar
Power Consumption <3.5W (DC), <6.0VA (AC)
Material Aluminum Body, Standard Seals (NBR)
Valve Structure 5/2 Double Solenoid Namur Valve
Way Type 5 Way, 2 Position
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DCS-K1R 5x2 Double Solenoid Namur Valve Price And Quantity

Price 2627.0 INR/Piece
Minimum Order Quantity 1 Piece

DCS-K1R 5x2 Double Solenoid Namur Valve Product Specifications

Dimension (L*W*H) Approx. 110 x 33 x 65 mm
Operating Voltage 24V DC / 230V AC (option)
Pressure 1.5 to 8 bar
Way Type 5 Way, 2 Position
Working Temperature -10C to +60C
Material Aluminum Body, Standard Seals (NBR)
End Connection Namur Standard
Weight approx. 380 g
Temperature of Media -10C to +60C
Working Presssure 1.5 to 8 bar
Power Consumption <3.5W (DC), <6.0VA (AC)
Media Compressed Air, Neutral Gases
Valve Structure 5/2 Double Solenoid Namur Valve
Application Actuator Automation, Pneumatic Systems
Port Size Namur Interface
Processing Type Precision Machined
Connection Type Direct Namur Mount
Color Silver/Black

Flow Rate 900 l/min
Spool Type Sliding Spool
Manual Override Yes, Available
Exhaust Push-in Mufflers, Threaded Ports
Actuation Electrical (Solenoid)
Body Finish Anodized Aluminum
Switching Time <40ms
Operation Double Solenoid
Protection Class IP65 (With Plug Properly Mounted)
Mounting Namur Interface Direct Mounting
Insulation Class F
Seal Material Nitrile Rubber (NBR)

DCS-K1R 5x2 Double Solenoid Namur Valve Trade Information

Delivery Time 7 Days

Product Description

UFLOW DCS-K1R 5/2-Way Double Solenoid NAMUR Valve (1/4" BSP)

Upgrade your automated process line management with the high-efficiency UFLOW DCS-K1R 5/2-Way Double Solenoid NAMUR Valve. Explicitly engineered to govern heavy-duty double-acting pneumatic rotary actuators, this robust control valve relies on a direct-mount NAMUR standard pad interface. By eliminating independent plumbing adapters, interconnecting hoses, and loose fittings, the valve creates a secure, highly condensed profile over your quarter-turn ball or butterfly valves that minimizes pressure drop-offs and system leak variables.

Driven by an efficient bistable dual-coil design, the DCS-K1R switches internal flow orientation through momentary electrical pulses on either side, requiring zero continuous current to stay in position. This functional layout acts as a vital safety memory lock, ensuring that connected double-acting actuators reliably maintain their last physical operating state during unexpected power outages or pilot signal drops. Constructed from an anodized aluminum body, precision-machined brass elements, and heavy-duty Nitrile rubber gaskets, it easily withstands demanding, rapid-switching workloads up to 600 cycles per minute. Complete with two dual-insulated, IP65-rated Class H epoxy square coils that isolate electrical internals from moisture and airborne dust, this valve provides exceptional continuous-duty durability across modern chemical plants, water treatment complexes, and automated processing environments.

Quick and Reliable Actuation

With a double solenoid configuration and sliding spool design, the DCS-K1R delivers exceptionally fast switching-typically under 40ms. This ensures your automation processes can operate with minimal delay and dependable response times, crucial for maintaining efficiency in pneumatic actuator applications.

Durable Construction and Sealing

Built using anodized aluminum and precision machining, the valve ensures resistance to corrosion and mechanical wear. The NBR (Nitrile Rubber) seals provide excellent compatibility with compressed air and neutral gases, preventing leaks for various industrial environments and extending the valve's lifespan.

Simple and Versatile Mounting

The direct Namur interface mounting system allows seamless installation onto actuators or systems that support the Namur standard. Its compact design and integrated push-in mufflers simplify both new installations and maintenance routines, making it ideal for diverse automation applications.

FAQ's of DCS-K1R 5x2 Double Solenoid Namur Valve:

Q: How is the DCS-K1R valve mounted in a pneumatic system?

A: The valve is designed for direct mounting onto actuators or manifolds using the Namur interface, ensuring quick and secure installation in compliant automation setups.

Q: What types of media can be used with this valve?

A: The DCS-K1R valve is suitable for use with compressed air and neutral gases, thanks to its anodized aluminum body and NBR seals, ensuring reliable sealing and performance.

Q: When should a manual override be used?

A: The manual override feature should be used during system setup, testing, or in emergency situations where manual intervention is required to operate the valve without electrical power.

Q: Where is this valve typically applied?

A: It is typically used in actuator automation and pneumatic systems across industries, such as for controlling rotary or linear actuators in processing plants, automation lines, or remote installations.

Q: What benefits does the IP65 protection offer for this valve?

A: IP65 protection ensures the valve is dust-tight and protected against low-pressure water jets from any direction, making it reliable for use in challenging or outdoor environments when the plug is properly mounted.

Q: How does the valve ensure quick response times in automation?

A: With an electrical double solenoid actuation and sliding spool mechanism, the valve achieves switching times of less than 40 milliseconds, facilitating rapid and precise control within automated workflows.

Q: What is the process for electrical connection and voltage options?

A: The valve can be connected to either 24V DC or 230V AC power sources, with flexible wiring options. Ensure proper insulation and secure plug mounting to maintain IP65 protection and optimal operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Solenoid Valve' category

DCS-C1 3x2 Double Solenoid Valve Price : 2395.0 INR/Piece Minimum Order Quantity : 1 Media : Other, Air Color : Silver and black Connection Type : Other, Threaded Application : Industrial automation, pneumatic control systems Port Size : 1/4 (BSP) Valve Structure : Other, Double Solenoid Spool Type Working Presssure : 0.15 to 0.8 MPa Power Consumption : 4.5 W (DC); 8.5 VA (AC) Processing Type : Other, Precision Machined Way Type : Other, 3/2 Way Working Temperature : 5C to 60C Dimension (L*W*H) : Standard as per manufacturer, typically compact Operating Voltage : 24V DC / 230V AC (others on request) Pressure : Other, 0.15 MPa to 0.8 MPa Temperature of Media : Other, 5C to 60C Material : Other, Aluminum Body, Engineering Plastic Spool End Connection : BSP Female Weight : Approx. 500g (varies by configuration)

Send Inquiry

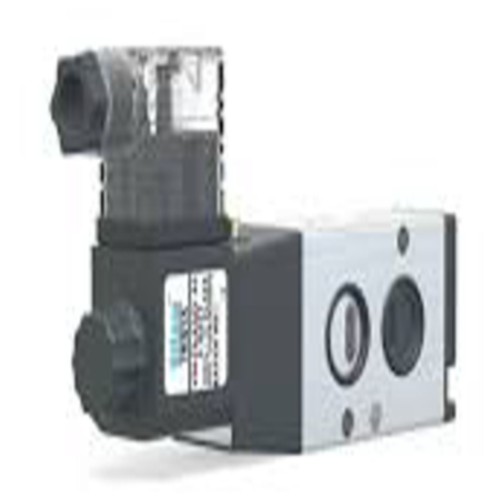

DCS-J1R 5x2 Single Solenoid Namur Valve with Spring Return Price : 1901.0 INR/Piece Minimum Order Quantity : 1 Media : Other, Filtered Air Color : Silver & Black Connection Type : Other, Direct NAMUR Mounting Application : Actuator Automation/Process Control Port Size : NAMUR Interface Valve Structure : Other, 5/2 Way Working Presssure : 0.15~0.8 MPa Power Consumption : Approx. 3.5 W (DC) Processing Type : Other, Precision Machining Way Type : Other, Single Solenoid NAMUR Mounted Working Temperature : 5C to 60C Dimension (L*W*H) : Refer to product sheet Operating Voltage : 24V DC / 110V AC / 220V AC (options) Pressure : Other, 0.15~0.8 MPa Temperature of Media : Other, 5C to 60C Material : Other, Aluminum Alloy End Connection : NAMUR Standard Weight : Approx. 0.4 kg
