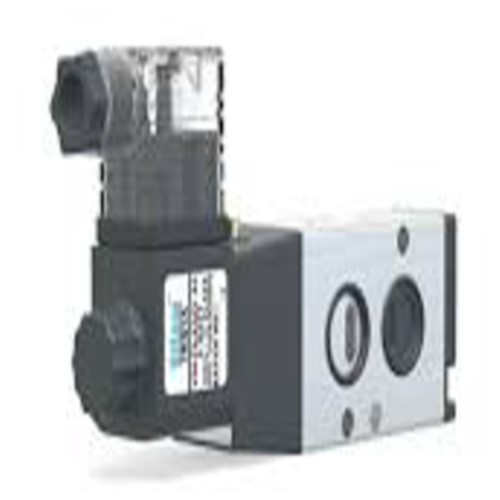

DCS-J1R 5x2 Single Solenoid Namur Valve with Spring Return

Name: DCS-J1R 5x2 Single Solenoid Namur Valve with Spring Return
Brand: DARSHIL TRADING
Price: 1901.0 INR
Availability: InStock

1901.0 INR/Piece

Get a Price/Quote

Product Details:

Power Consumption Approx. 3.5 W (DC)
Working Presssure 0.15~0.8 MPa
End Connection NAMUR Standard
Operating Voltage 24V DC / 110V AC / 220V AC (options)
Material Aluminum Alloy
Valve Structure 5/2 Way
Way Type Single Solenoid NAMUR Mounted
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DCS-J1R 5x2 Single Solenoid Namur Valve with Spring Return Price And Quantity

Price 1901.0 INR/Piece
Minimum Order Quantity 1 Piece

DCS-J1R 5x2 Single Solenoid Namur Valve with Spring Return Product Specifications

Color Silver & Black
Working Presssure 0.15~0.8 MPa
Dimension (L*W*H) Refer to product sheet
Power Consumption Approx. 3.5 W (DC)
Application Actuator Automation/Process Control
Material Aluminum Alloy
Port Size NAMUR Interface
Pressure 0.15~0.8 MPa
Connection Type Direct NAMUR Mounting
Weight Approx. 0.4 kg
Processing Type Precision Machining
Way Type Single Solenoid NAMUR Mounted
Valve Structure 5/2 Way
Operating Voltage 24V DC / 110V AC / 220V AC (options)
End Connection NAMUR Standard
Temperature of Media -5C to 60C
Working Temperature -5C to 60C
Media Filtered Air

Solenoid Type Single, Spring Return
Cycle Life Over 10 million cycles
Exhaust Type Internal/External selectable
Installation Position Any position
Seal Material NBR (Nitrile Rubber)
Manual Override Yes
Protection Class IP65
Response Time < 50 ms
Mounting Type NAMUR Interface

DCS-J1R 5x2 Single Solenoid Namur Valve with Spring Return Trade Information

Delivery Time 7 Days

Product Description

UFLOW DCS-J1R 5/2-Way Single Solenoid NAMUR Valve with Spring Return (1/4" BSP)

Streamline your double-acting rotary actuator installations with the precision-engineered UFLOW DCS-J1R 5/2-Way Single Solenoid NAMUR Valve. Designed to mount directly onto standardized NAMUR-pattern pneumatic actuators, this valve eliminates bulky connecting hoses and separate plumbing fittings, providing a compact, space-saving design with decreased risk of pressure loss. Utilizing a single-coil electrical setup, the valve cleanly switches internal air paths to execute smooth bidirectional cylinder motion, while a rugged internal mechanical spring return instantly snaps the spool back to its safe default position the moment power is cut.

Constructed from a premium corrosion-resistant aluminum body, solid brass components, and wear-resistant Nitrile rubber seals, the DCS-J1R handles rigorous cycling up to 600 cycles per minute across a dependable lifespan of over 10 lakh operations. It effectively provides a high flow rate of 1200 LPM under working pressures ranging from 2 to 10 bar. Paired with an IP65-protected, Class H insulated epoxy square coil, this valve provides superior defense against industrial dust and humidity, making it an essential control element for chemical processing, water treatment facilities, and packaging automation.

Versatile NAMUR Interface

Designed for seamless integration, the DCS-J1R features direct NAMUR mounting and port sizes, ensuring compatibility with a wide array of actuators. Its adaptable connection type simplifies setup, supporting swift installation in varied automation applications.

High Durability and Reliability

Engineered from precision-machined aluminum alloy and sealed with NBR, the DCS-J1R valve guarantees enduring performance. With a cycle life exceeding 10 million cycles and IP65-rated protection, it withstands demanding working conditions over extended periods.

Optimal Performance and Safety

Offering quick reaction with <50 ms response time, this valve is ideally suited to dynamic process control environments. The manual override function adds an extra layer of operational security, facilitating maintenance and emergency interventions without disrupting system performance.

FAQ's of DCS-J1R 5x2 Single Solenoid Namur Valve with Spring Return:

Q: How is the DCS-J1R 5x2 Single Solenoid Namur Valve installed?

A: This valve utilizes a direct NAMUR mounting interface, ensuring easy and secure attachment to compatible actuators. Its installation position is flexible, allowing it to be mounted in any orientation depending on your application requirements.

Q: What are the benefits of the spring return single solenoid design in this valve?

A: The single solenoid with spring return provides rapid and reliable actuation with automatic reset, improving control and minimizing manual intervention. This design also enhances safety by ensuring the valve returns to its original position if power is lost.

Q: When should internal or external exhaust be selected on the DCS-J1R valve?

A: Choose internal exhaust for standard automation systems where exhaust air is managed within the actuator assembly. Opt for external exhaust when specific venting or environmental requirements necessitate directing exhaust air outside the system.

Q: Where can the DCS-J1R valve be most effectively used?

A: This valve is ideal for actuator automation and process control applications in industrial settings involving filtered air as the media, such as chemical processing, oil and gas, and manufacturing automation lines.

Q: What maintenance processes are recommended for optimal performance?

A: Periodic inspections of the NBR seals and actuator assembly, along with keeping the supplied air clean and filtered, will maximize longevity and system reliability. The manual override feature allows safe testing and maintenance when required.

Q: How does the IP65 protection class benefit this NAMUR valve?

A: IP65 rating ensures the valve is highly resistant to dust ingress and low-pressure water jets from any direction, making it suitable for harsh environments where moisture and particulate contamination are concerns.
