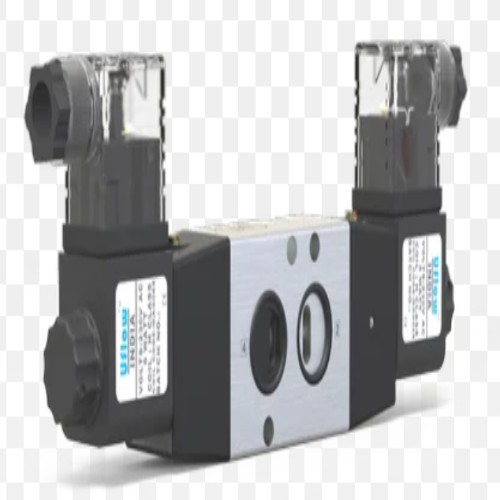

DCS-K1R 3x2 Double Solenoid Namur Valve

Name: DCS-K1R 3x2 Double Solenoid Namur Valve
Brand: DARSHIL TRADING
Price: 2627.0 INR
Availability: InStock

2627.0 INR/Piece

Get a Price/Quote

Product Details:

Working Presssure 1.5 to 8 bar
End Connection NAMUR Mounting Standard
Power Consumption 2.5W
Operating Voltage 24V DC (Other voltages available)
Material Aluminum Alloy
Valve Structure Namur Mount Double Solenoid Valve
Way Type 3/2 Way
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DCS-K1R 3x2 Double Solenoid Namur Valve Price And Quantity

Minimum Order Quantity 1 Piece
Price 2627.0 INR/Piece

DCS-K1R 3x2 Double Solenoid Namur Valve Product Specifications

Way Type 3/2 Way
Operating Voltage 24V DC (Other voltages available)
Color Black & Silver
Media Air
Working Temperature -20C to +60C
Dimension (L*W*H) Approx. 110 x 30 x 54 mm
Weight Approx. 0.55 kg
Connection Type Direct NAMUR Mounting
Pressure 1.5 to 8 bar
Power Consumption 2.5W
End Connection NAMUR Mounting Standard
Port Size Namur Interface
Temperature of Media -20C to +60C
Valve Structure Namur Mount Double Solenoid Valve
Application Pneumatic Actuator Control
Processing Type Precision Machined
Working Presssure 1.5 to 8 bar
Material Aluminum Alloy

Manual Override Yes, Push Type
Coil Insulation Class Class F
Body Finish Anodized
Protection Class IP65 with Plug
Response Time <40 ms
Mounting Position Any position

DCS-K1R 3x2 Double Solenoid Namur Valve Trade Information

Delivery Time 7 Days

Product Description

UFLOW DCS-K1R 3/2-Way Double Solenoid NAMUR Valve (1/4" BSP)

Upgrade your heavy-duty rotary process valve loops with the high-performance UFLOW DCS-K1R 3/2-Way Double Solenoid NAMUR Valve. Purpose-built to mount cleanly onto standard NAMUR-pattern pneumatic actuators, this streamlined component forms a rigid mechanical connection directly over your process valve, completely eliminating extra pilot tubing, bulky adapters, and potential system pressure leak vectors. Utilizing a distinct bistable dual-coil design, the valve shifts internal air paths via brief, momentary electrical impulses, latching into position and safely holding its state during an unexpected total loss of factory floor power.

The DCS-K1R is constructed from an anodized, corrosion-resistant aluminum body fitted with precision-machined brass components and premium Nitrile rubber seals to manage harsh manufacturing environments over extended duty lifecycles. It easily manages high airflow demands up to 1200 LPM under operating pressures from 2 to 10 bar. Backed by two heavy-duty, IP65-rated Class H epoxy square coils that guard internal elements against airborne particulate matter and high-pressure fluid sprays, this valve stands out as an energy-efficient, fast-response command point for quarter-turn ball and butterfly automated valves in chemical processing plants, water treatment complexes, and bulk material transport networks.

Precision and Durability

The DCS-K1R valve boasts an anodized finish and a rigorously precision-machined aluminum alloy body, ensuring exceptional durability and reliable operation over extended periods. Its IP65 rating provides dust and water protection, making it suitable for demanding industrial environments.

Versatile and Fast Performance

With a rapid response time of under 40 milliseconds and compatibility with a broad pressure range, the DCS-K1R adapts to various pneumatic actuator control needs. Its push-type manual override and multiple voltage options enhance operational flexibility.

Universal Mounting and Application

Engineered for direct NAMUR mounting, this 3/2 way valve offers simple, versatile installation in any position. Suitable for distributor, exporter, importer, manufacturer, service provider, supplier, and trader roles, it is ideal for automation systems requiring swift, dependable actuation.

FAQ's of DCS-K1R 3x2 Double Solenoid Namur Valve:

Q: How is the DCS-K1R 3x2 Double Solenoid Namur Valve installed?

A: This valve is designed for direct NAMUR mounting, simplifying installation on corresponding actuator interfaces in any position. No additional adapters are required, thanks to the standardized NAMUR interface.

Q: What are the primary applications for this Namur solenoid valve?

A: Primarily used for pneumatic actuator control in automation systems, the DCS-K1R is suitable for industrial applications where fast and reliable air control is essential. It is widely utilized by distributors, manufacturers, suppliers, and service providers.

Q: When should I use the manual override feature?

A: The push-type manual override allows for manual actuation of the valve when electrical control is unavailable or during system testing and maintenance. It ensures operational flexibility and safety during troubleshooting or emergencies.

Q: Where can the DCS-K1R valve be mounted?

A: Thanks to its modular design, this valve can be mounted in any position on compatible actuators adhering to the NAMUR standard. Its IP65 protection makes it suitable for indoor or outdoor industrial environments.

Q: What is the operational process for this solenoid valve?

A: When supplied with 24V DC power (other voltages are available), the valve rapidly shifts within 40 milliseconds to control air flow, redirecting and managing actuator movement based on solenoid activation signals.

Q: What are the key benefits of using the DCS-K1R valve?

A: The main benefits include fast response time, high durability due to its anodized aluminum body, suitability for harsh conditions, easy installation, and versatile mounting. The valve also offers reliable control with manual override and energy efficiency through low power consumption (2.5W).
